About These Drawings

The following images I've painstakingly created to provide reference information as to where basic amenities and common things people inquire about on Amtrak trains are. It is my goal to have all current, at the time of writing, Amtrak revenue equipment shown here. However, I've not finished making them, as each drawing takes a few hours to do.

Single-Level Fleet

Amfleet Cars

The Amfleet cars are a series of single-level passenger cars that have been a staple of Amtrak's fleet since the mid-1970s. Known for their distinctive rounded shape, they are used primarily on short-to-medium distance routes.

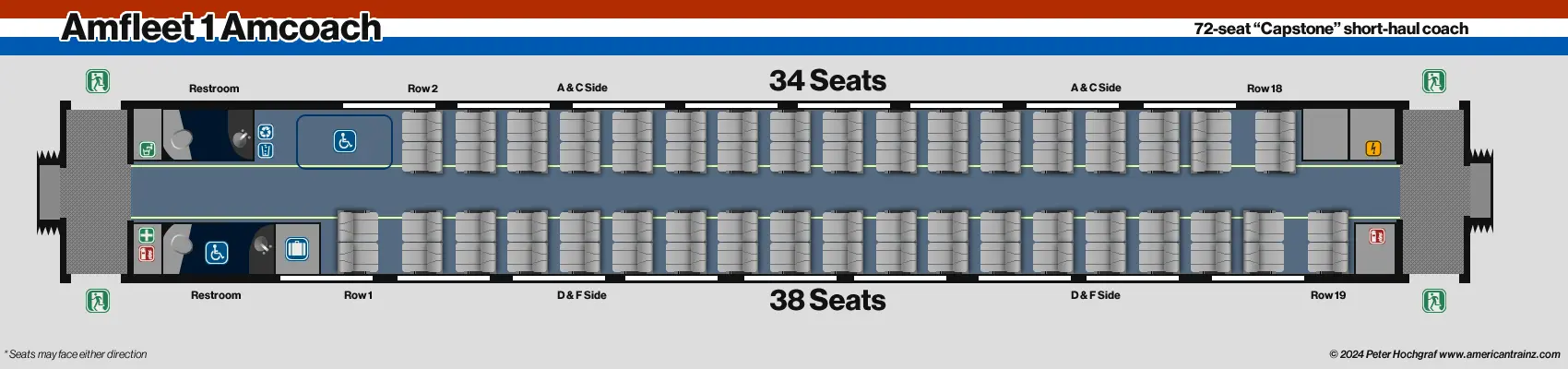

Amfleet I Coach

Amfleet I coach cars are iconic single-level passenger cars that have been a staple of Amtrak's fleet since the mid-1970s. Known for their distinctive round shape, these coaches were designed for shorter-distance travel. They feature vestibules on both ends for faster boarding and deboarding and provide comfortable seating for passengers.


Return to Top

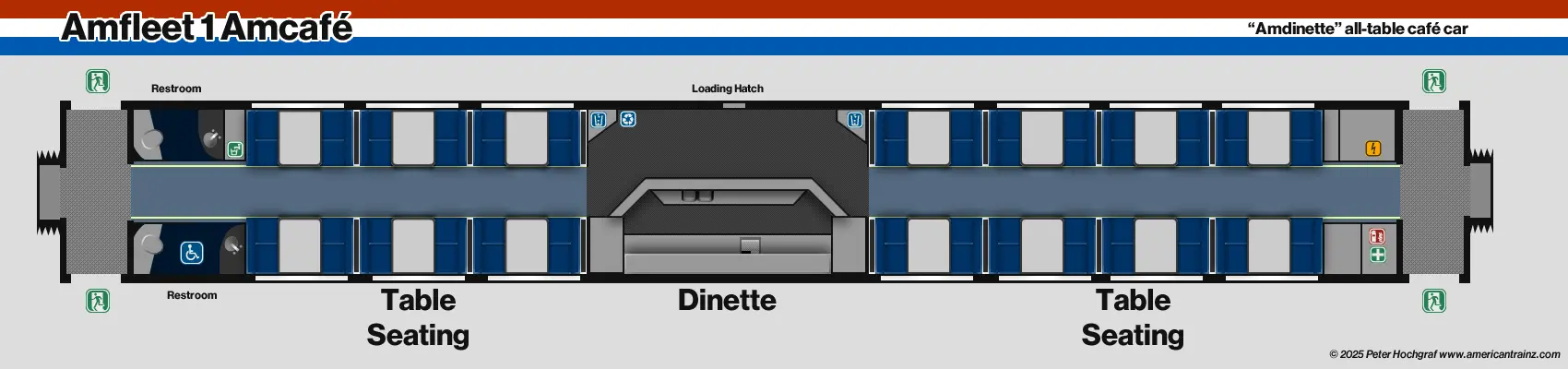

Amfleet I Cafe

Amfleet I cafe cars are iconic single-level passenger cars that have been a staple of Amtrak's fleet since the mid-1970s. Known for their distinctive round shape, these cafes were designed for to compliment the Amfleet I coaches. They feature vestibules on both ends for faster boarding and deboarding and provide table seating for passengers.


Return to Top

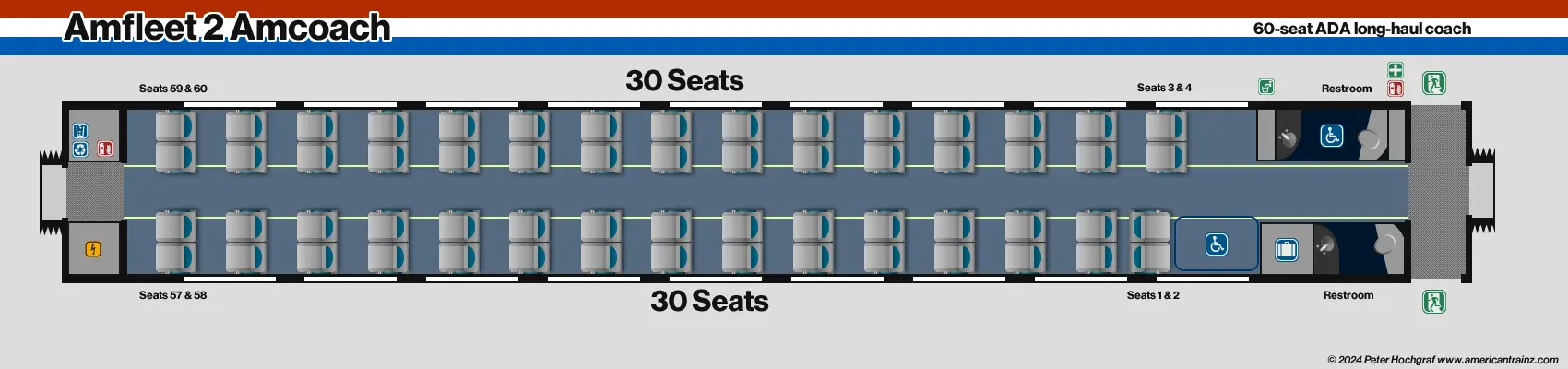

Amfleet II Coach

Amfleet II coach cars are a newer generation of passenger cars that replaced many of the older Heritage cars in Amtrak's fleet. These cars are designed for both long-distance and short-distance travel and offer improved amenities, such as larger windows, more legroom, and upgraded seating.


Return to Top

Amfleet II Business/Cafe

Coming Soon!

Amfleet II cafe cars are a newer generation of passenger cars that replaced many of the older Heritage cars in Amtrak's fleet. The Cafe/Business cars feature table seating for cafe customers on one half of the car, and business class seating on the other half. These cars are designed for both long-distance and short-distance travel and offer improved amenities, such as larger windows, more legroom, and upgraded seating.


Return to Top

Viewliner Cars

The Viewliner fleet consists of single-level sleeper and dining cars. The key characteristic of these cars is their unique double-row of windows, which allows natural light into both the main cabin and the upper berths of the sleeper cars, providing a more open and spacious feel.

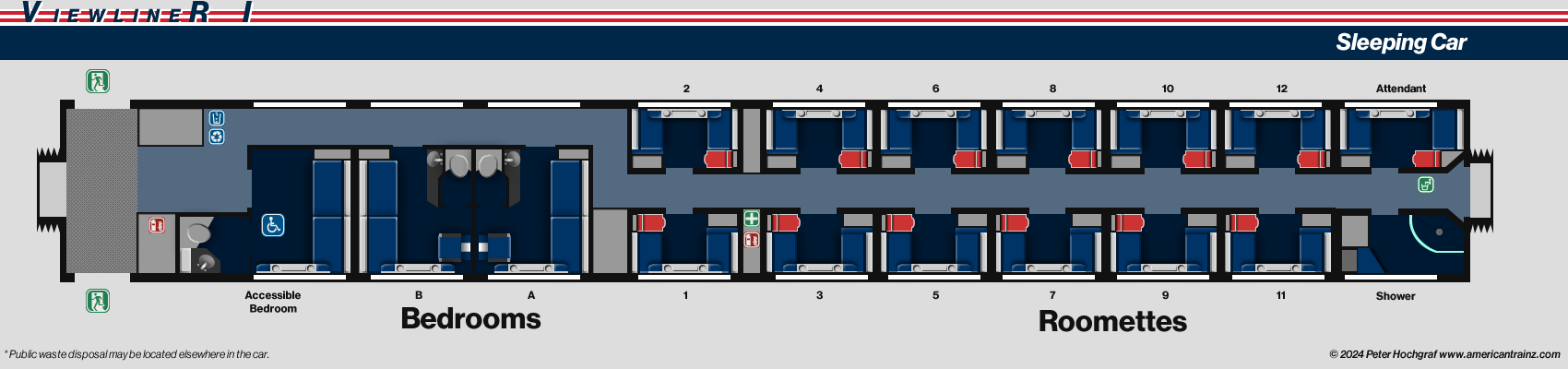

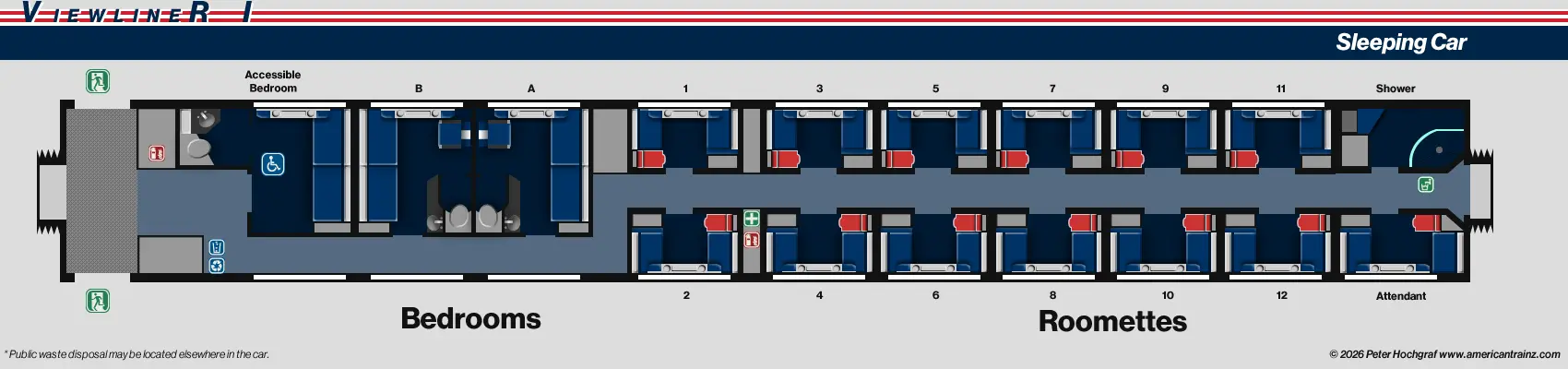

Viewliner I Sleeper

Viewliner I Sleeping cars are a type of single-level sleeper car used by Amtrak on long-distance trains. They were introduced in the 1990s and are used primarily on long-distance routes in and out of New York Penn Station.


Return to Top

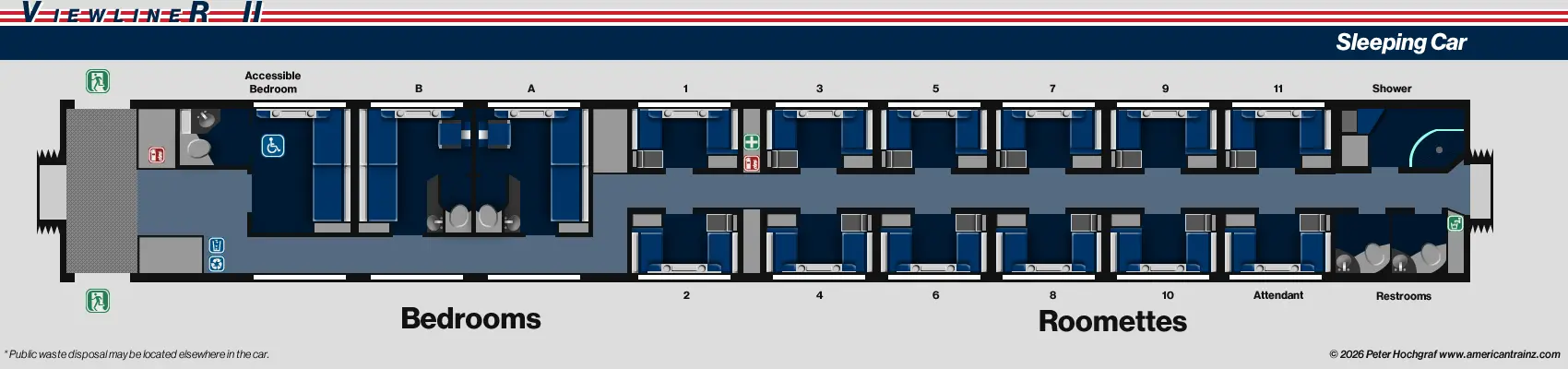

Viewliner II Sleeper

Viewliner II Sleeping cars are a newer generation of sleeper cars used by Amtrak on long-distance trains. They offer improved amenities over their predecessors. These are used primarily on long-distance routes in and out of New York Penn Station.


Return to Top

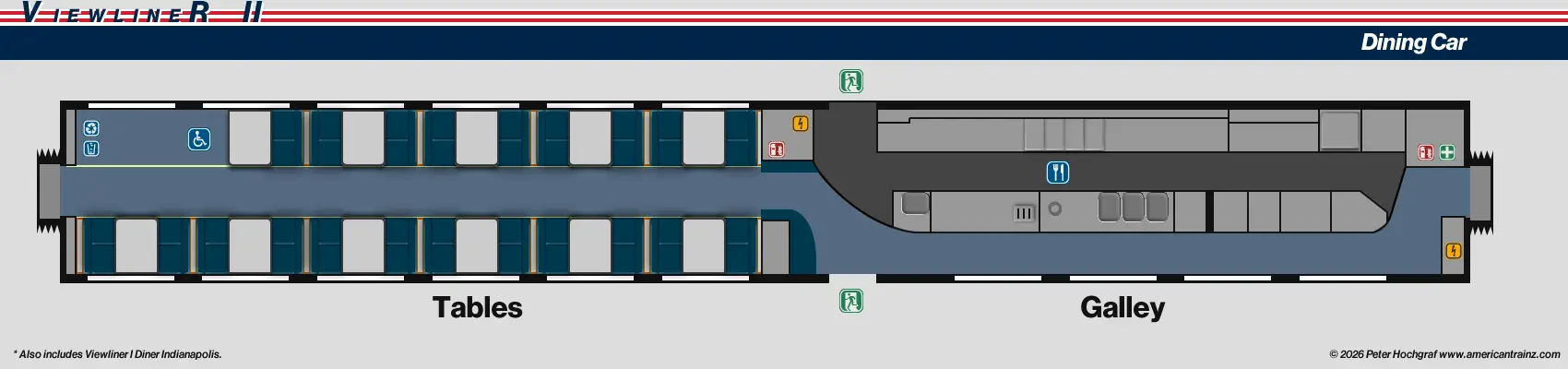

Viewliner Diner

Coming Soon!

Viewliner Dining cars are a specialized type of passenger car designed to provide dining services on long-distance Amtrak trains. These cars feature a large dining room with tables for passengers to enjoy their meals, as well as a galley area for preparing food. The dining cars are known for their elegant interior design and offer a variety of menu options, including breakfast, lunch, and dinner.


Return to Top

Acela Cars

Acela cars are used exclusively on Amtrak's high-speed Acela Express trains in the Northeast Corridor. They are designed for premium, high-speed service, offering first and business class accommodations. The new "NextGen Acela" cars, which are set to replace this fleet, will be added to this page after they have entered service.

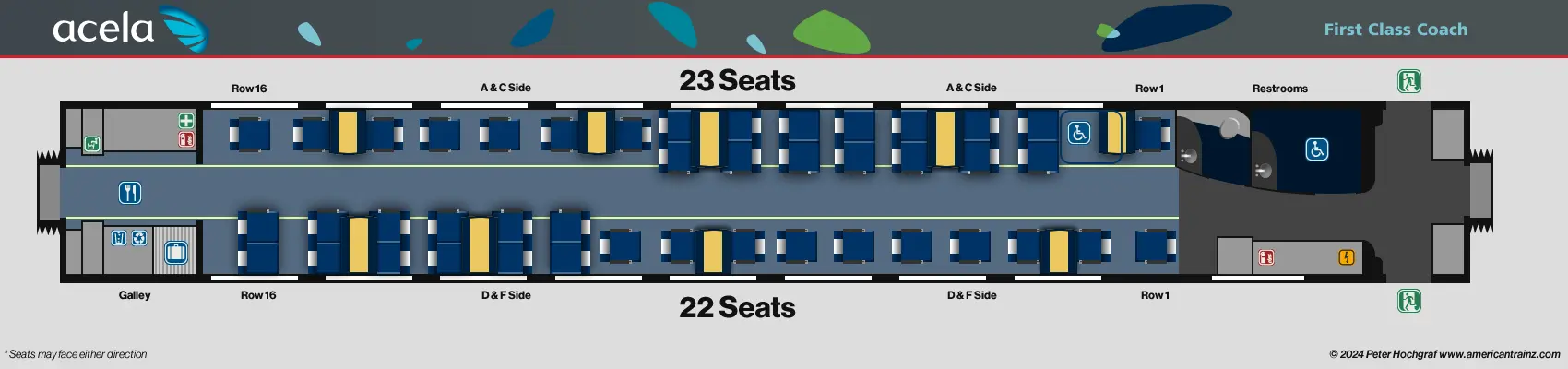

Acela First Class

Acela First Class offers a luxurious and comfortable travel experience on Amtrak's high-speed Acela Express trains. First Class passengers enjoy spacious seats with ample legroom and recline, as well as access to a dedicated First Class lounge in select stations. The lounge provides a quiet and relaxing environment for passengers to work or relax before their journey. First Class also includes complimentary meals and beverages, including alcoholic options, served by attendants.


Return to Top

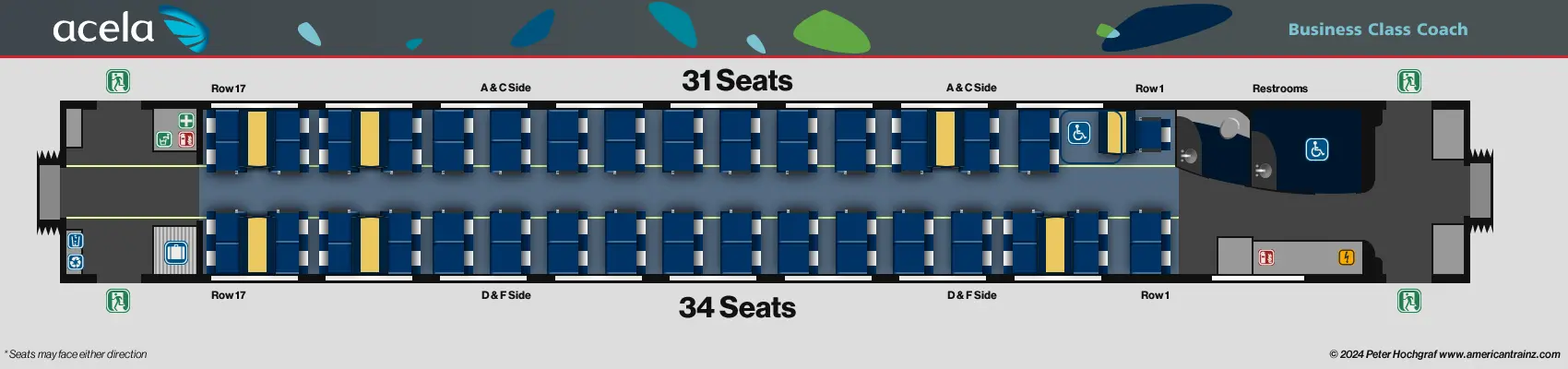

Acela Business Class

Acela Business Class offers a comfortable and convenient travel experience on Amtrak's high-speed Acela Express trains. Business Class passengers enjoy spacious seats with ample legroom and recline. Buiness Class is the lowest class available on Acela trains.


Return to Top

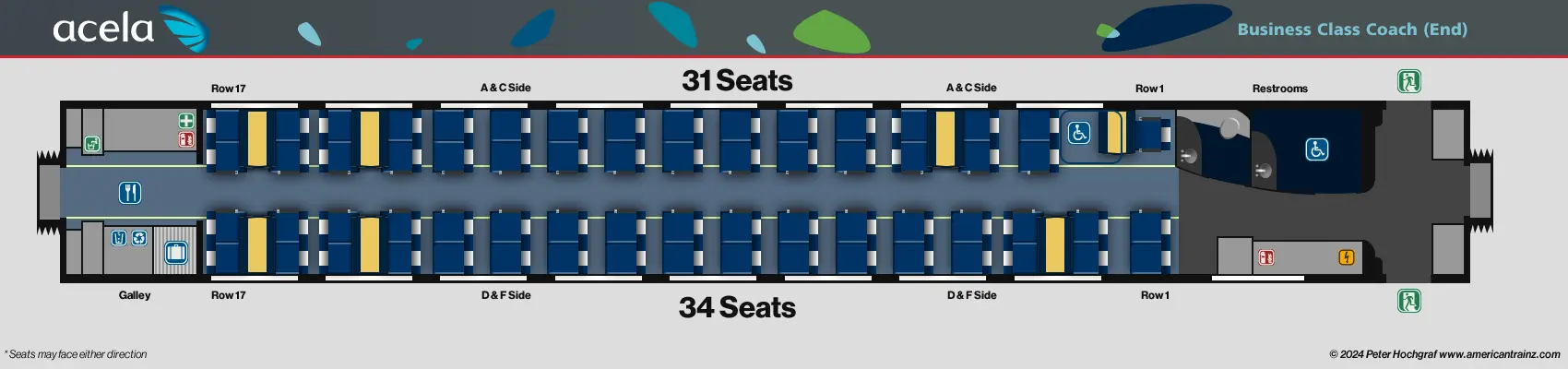

Acela Business Class (end)

Acela Business Class offers a comfortable and convenient travel experience on Amtrak's high-speed Acela Express trains. Business Class passengers enjoy spacious seats with ample legroom and recline. Buiness Class is the lowest class available on Acela trains.


Return to Top

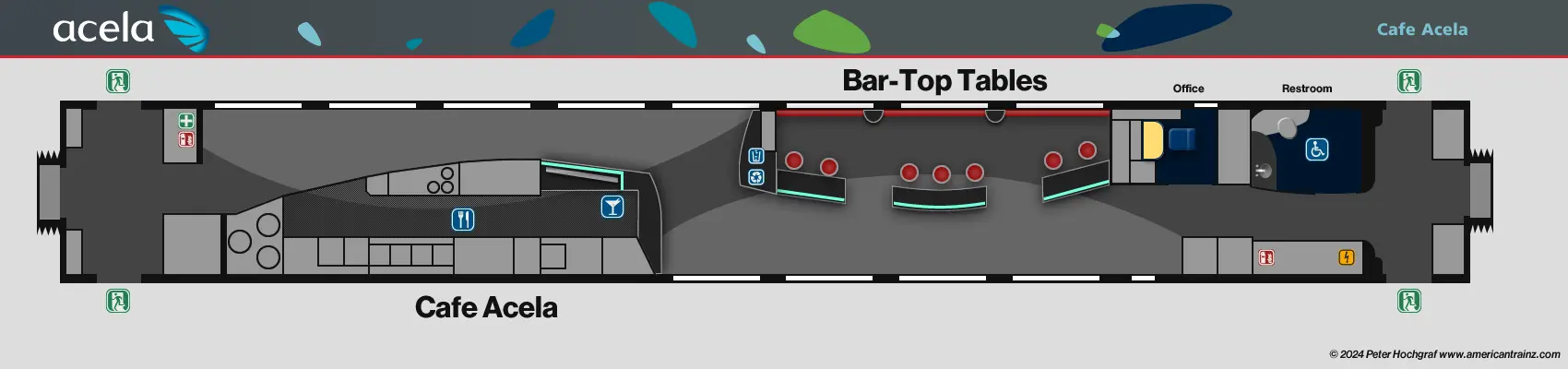

Acela Cafe

Acela Cafe offers food and beverage options to enhance travel experience on Amtrak's high-speed Acela Express trains. These cars feature a galley area for preparing meals and drinks, as well as bar-style seating for passengers who want to enjoy their food and beverages while traveling.


Return to Top

Venture Cars

Venture cars are the newest single-level passenger cars in the Amtrak fleet. They are used on a variety of routes for short-haul trips, replacing older equipment with modern, comfortable, and efficient rolling stock. If you're looking for information on the new "Airo" cars, they will be added after they enter service.

Venture Coach

Coming Soon!

Venture cars are the newest type of single-level passenger car used by Amtrak on various routes. They are known for their modern design, modern seating, and ample legroom. Venture cars feature large windows for scenic views, as well as information displays & automated announcements for passenger convenience. These cars are designed for short-haul trips.


Return to Top

Venture Coach/Business

Coming Soon!

Venture cars are the newest type of single-level passenger car used by Amtrak on various routes. They are known for their modern design, modern seating, and ample legroom. Venture cars feature large windows for scenic views, as well as information displays & automated announcements for passenger convenience. These cars are designed for short-haul trips. The business class cars are split between business class seating & coach class seating.


Return to Top

Venture Coach/Cafe

Coming Soon!

Venture cars are the newest type of single-level passenger car used by Amtrak on various routes. They are known for their modern design, modern seating, and ample legroom. Venture cars feature large windows for scenic views, as well as information displays & automated announcements for passenger convenience. These cars are designed for short-haul trips. Similar to the Horzon & Amfleet II cafe cars, the Venture cafe cars are split between cafe service & coach class seating.


Return to Top

Talgo Cars

Talgo cars are a unique type of passenger car used on Amtrak's Cascades route between Vancouver, BC, Seattle, WA, and Portland, OR. These unique passenger cars are designed to tilt into curves, allowing the train to travel at higher speeds and providing a smoother ride for passengers.

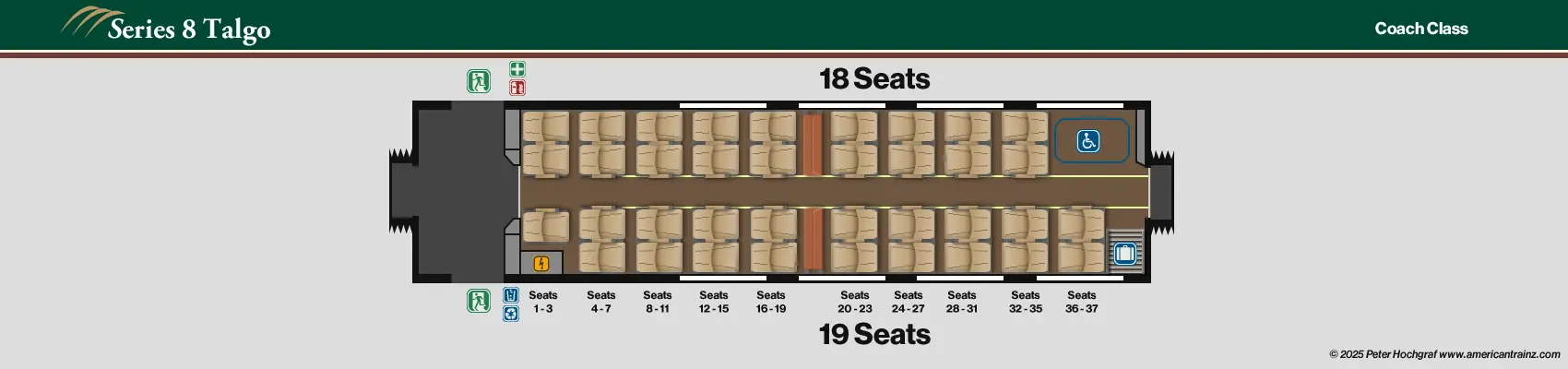

Series 8 Talgo Coach

The cars are known for their comfortable seating, large windows, and spacious interiors.


Return to Top

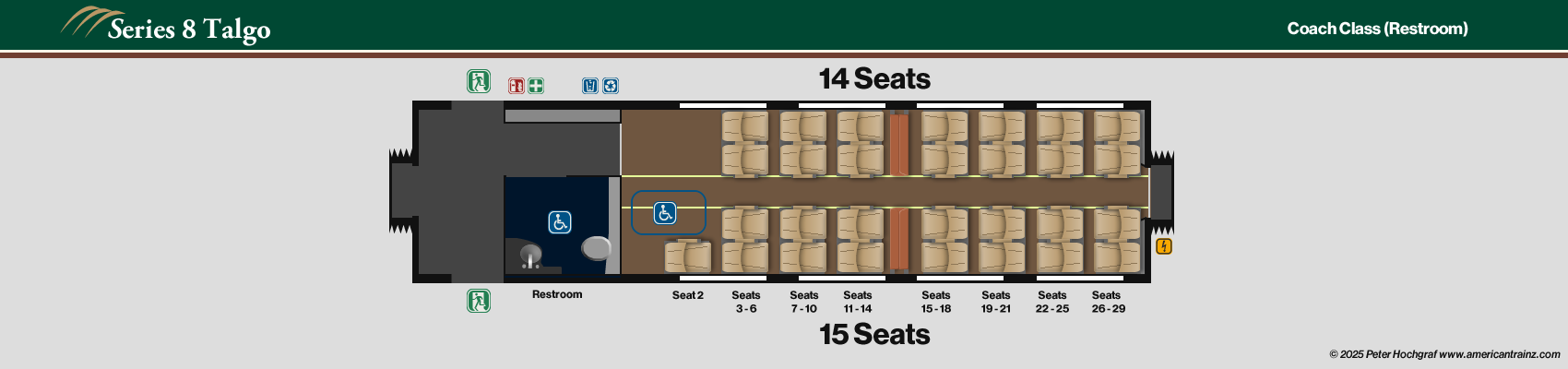

Series 8 Talgo Coach (Restroom)

The cars are known for their comfortable seating, large windows, and spacious interiors.


Return to Top

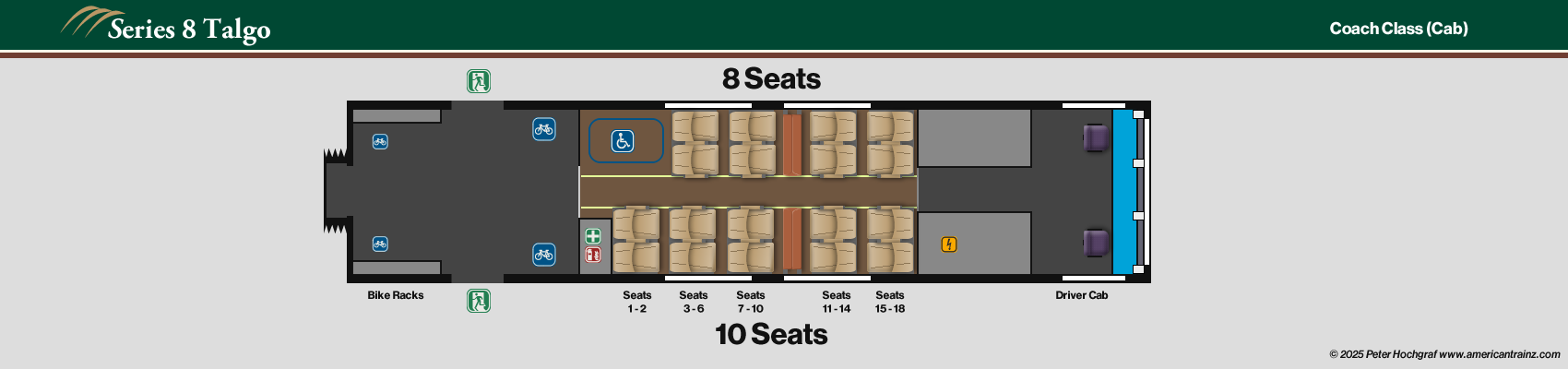

Series 8 Talgo Coach (Cab Car)

The cars are known for their comfortable seating, large windows, and spacious interiors.


Return to Top

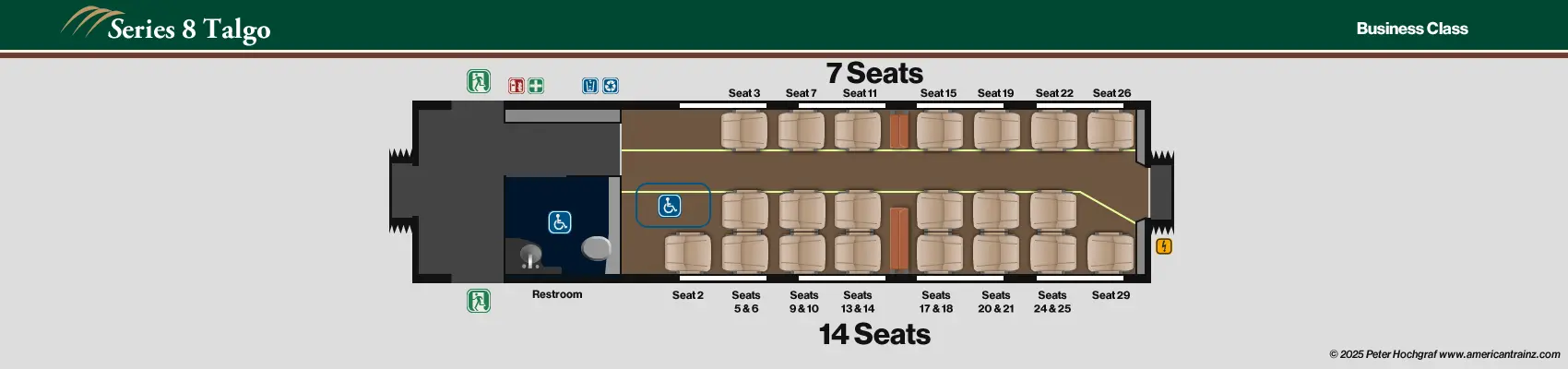

Series 8 Talgo Business

The cars are known for their comfortable seating, large windows, and spacious interiors.


Return to Top

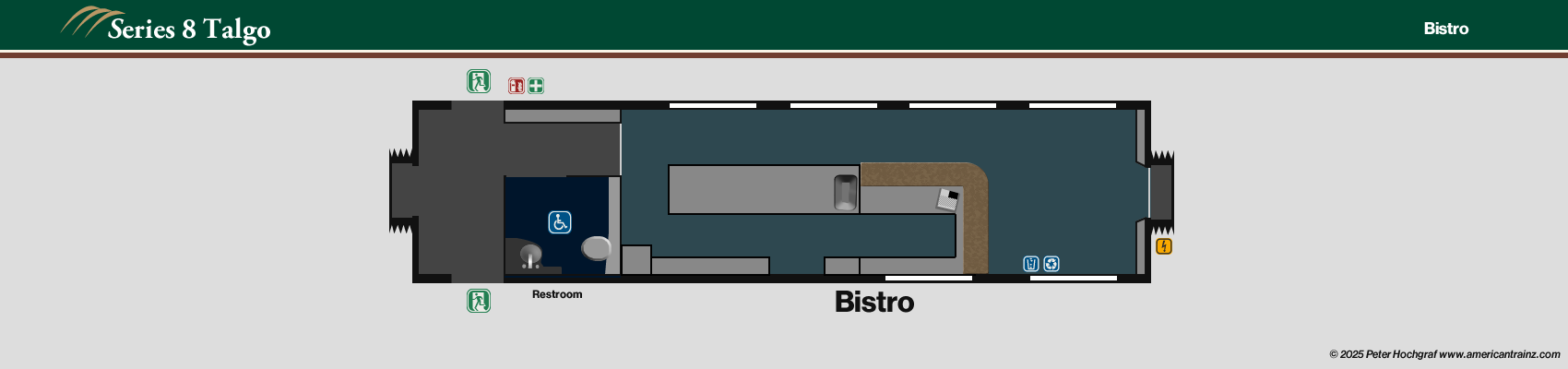

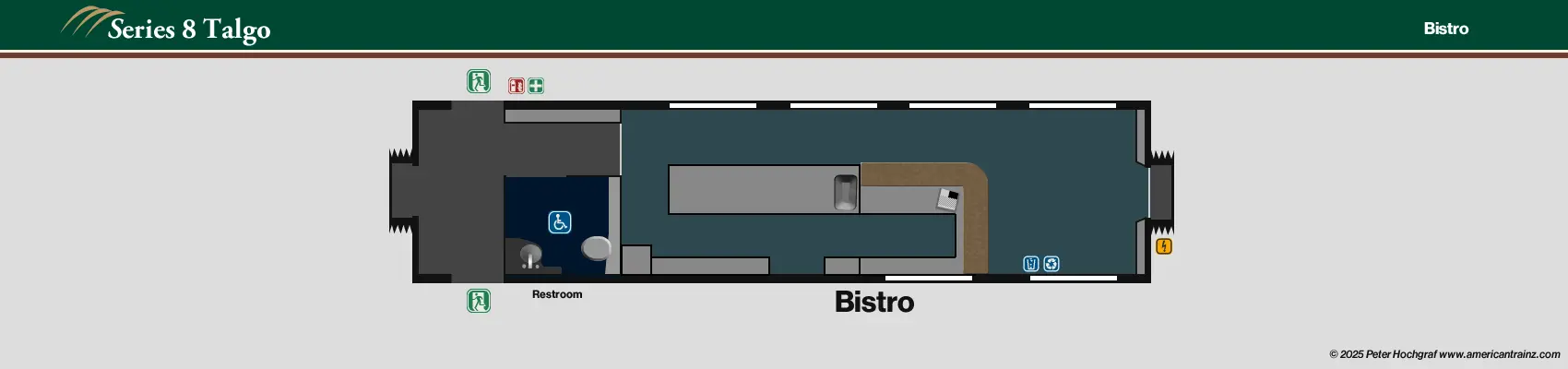

Series 8 Talgo Bistro

The cars are known for their comfortable seating, large windows, and spacious interiors.


Return to Top

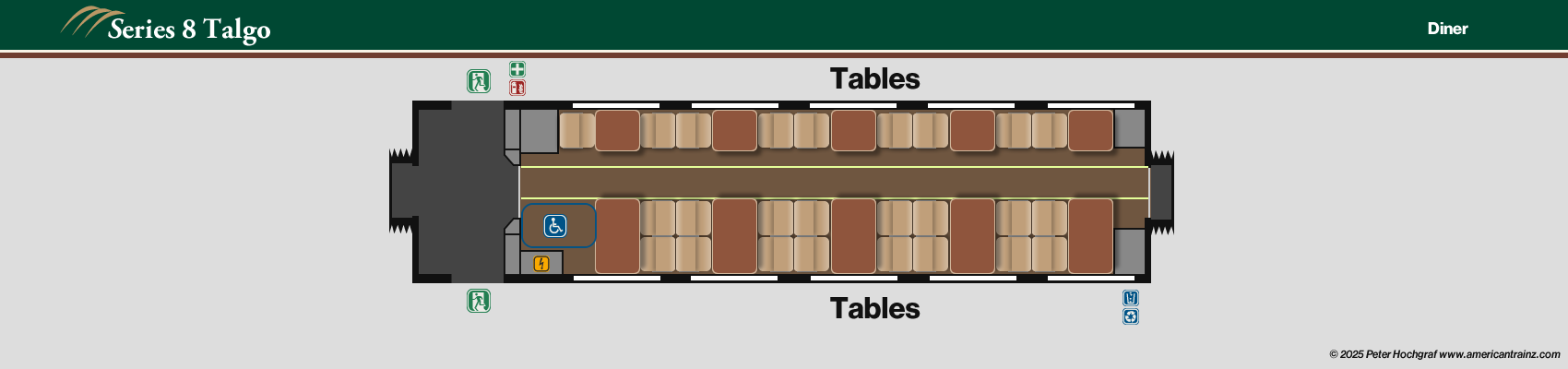

Series 8 Talgo Diner

TThe cars are known for their comfortable seating, large windows, and spacious interiors.


Return to Top

Dual-Level Fleet

Superliner Cars

Amtrak's Superliner fleet is a collection of double-decker passenger cars used on long-distance trains. These iconic cars offer a variety of accommodations, including coach seating, sleeping accomidations, dining cars, and lounge cars. Superliner cars are equipped with modern amenities making them comfortable for long journeys.

Willy Kaemena has made some excellent 360° tours of Amtrak Superliner cars. You can view them here.

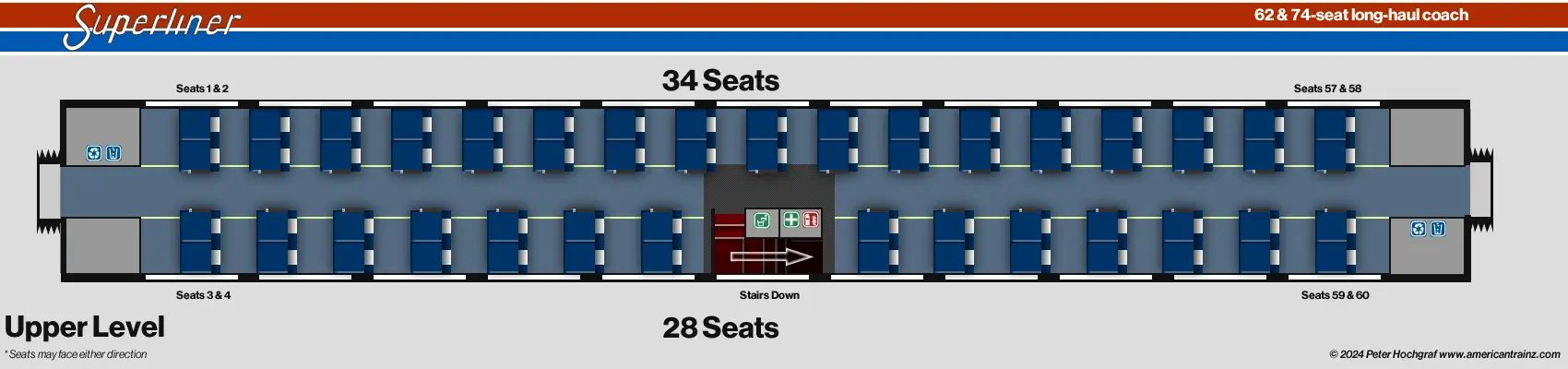

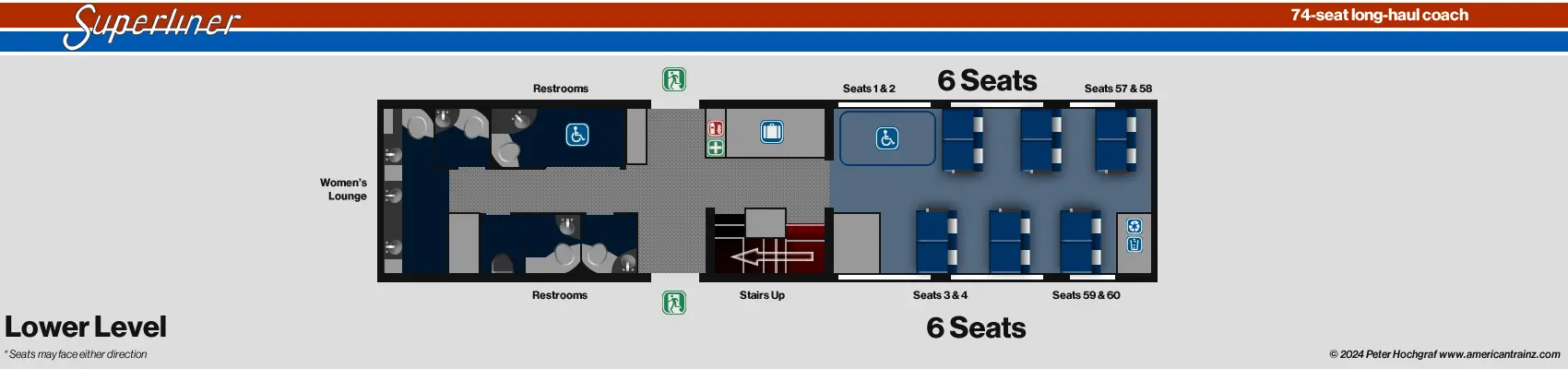

Superliner Coach

Superliner Coach cars are double-decker cars with seating on both levels. The lower level is designed for accessibility, while the upper level offers regular seating.



Return to Top

Superliner Coach Baggage

Superliner Coach Baggage cars have seating only on the upper level, while the lower level is used for checked baggage storage. Bathrooms are located on the lower level for passenger convenience.



Return to Top

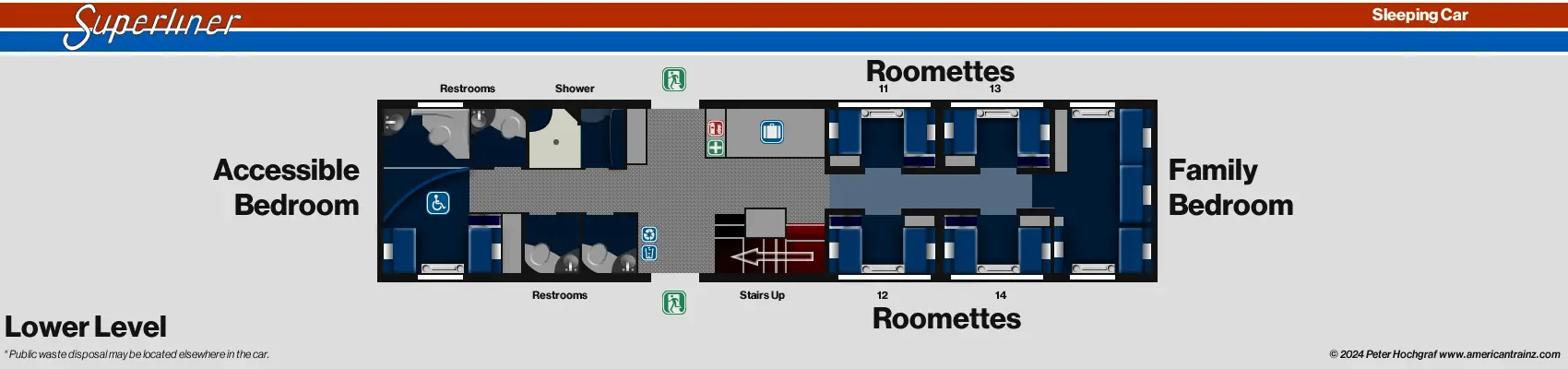

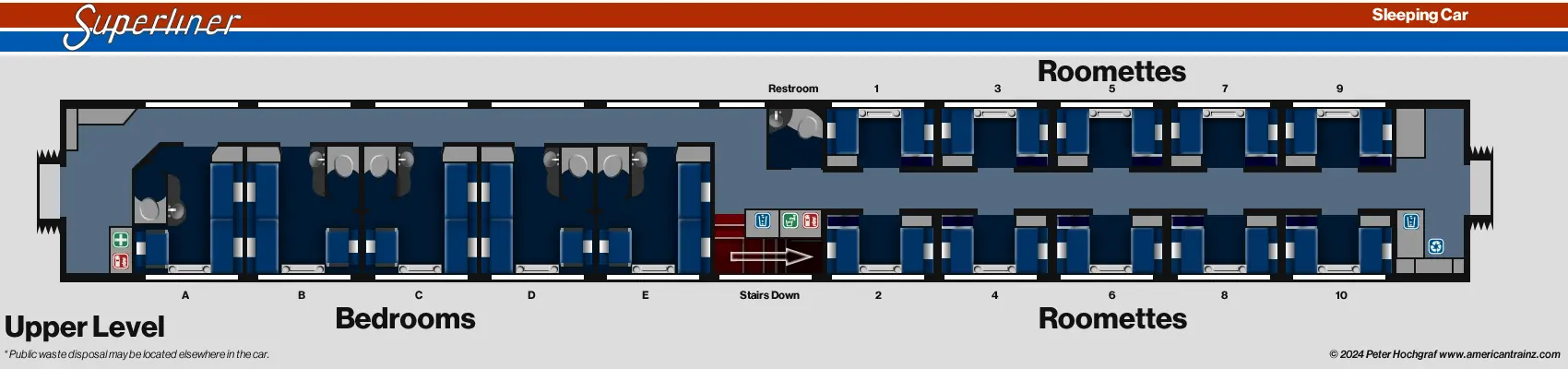

Superliner Sleeper

Superliner Sleeping Cars offer a variety of sleeping accommodations, including roomettes on both levels, bedrooms on the upper level, and specialized bedrooms on the lower level. These cars also feature shared bathrooms and a shower on the lower level.



Return to Top

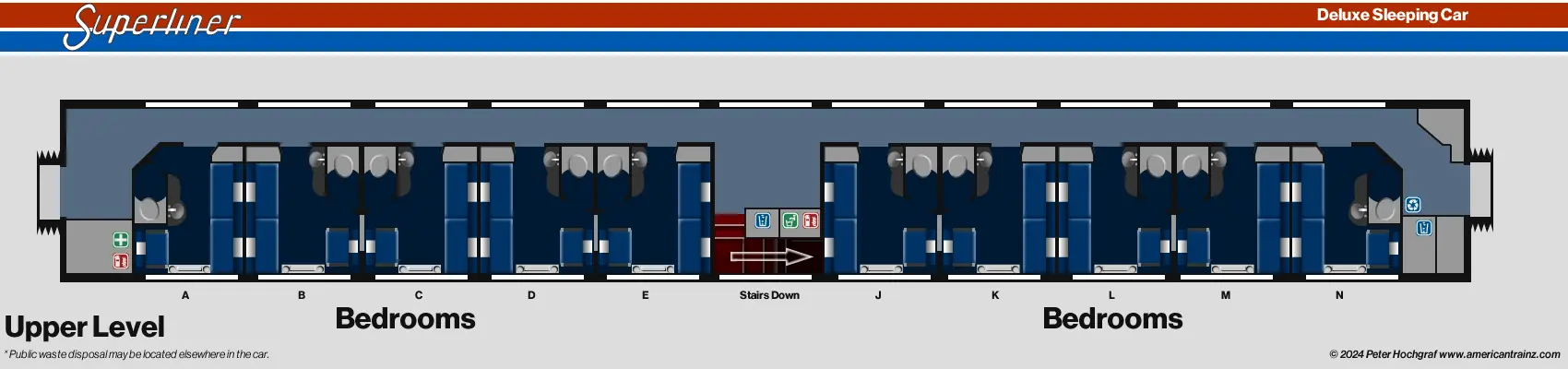

Superliner Deluxe Sleeper

Superliner Deluxe Sleeping Cars are only used on the Auto Train and offer larger bedrooms on the upper level. The lower level maintains the standard sleeping car layout.



Return to Top

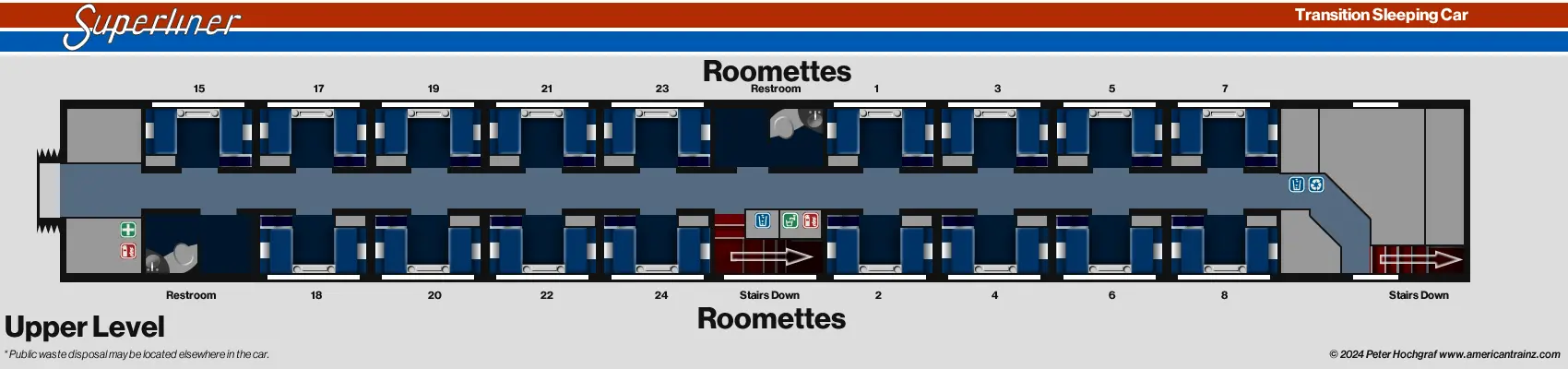

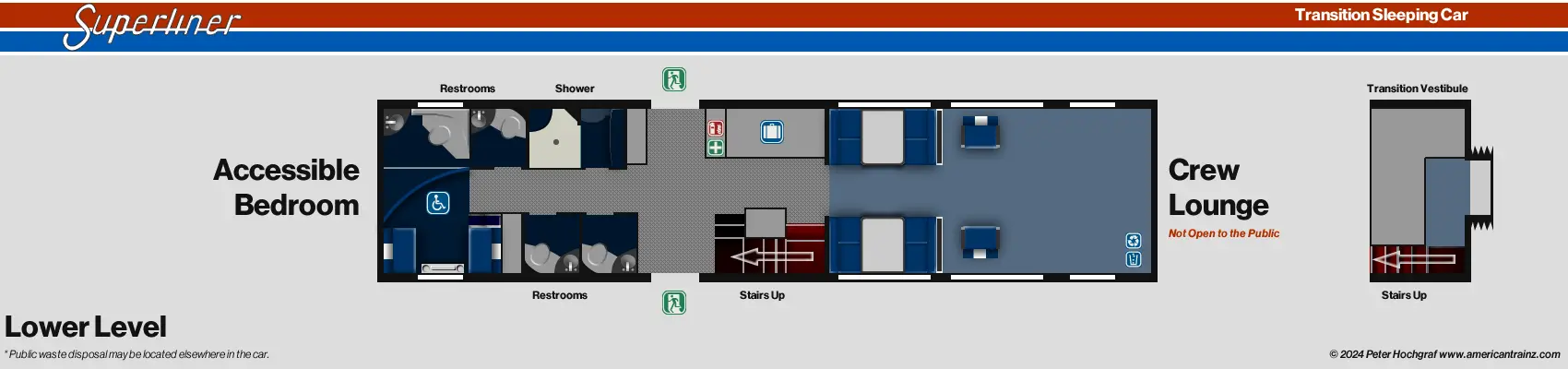

Superliner Transition Sleeper

Superliner Transition Sleeping Cars are designed to connect Amtrak's Superliner trains to other types of trains. They feature smaller roomettes on the upper level. The lower level houses the standard sleeping car complement of bathrooms and an accessible bedroom. However, instead of the usual roomettes, the lower level features a crew lounge for train staff.



Return to Top

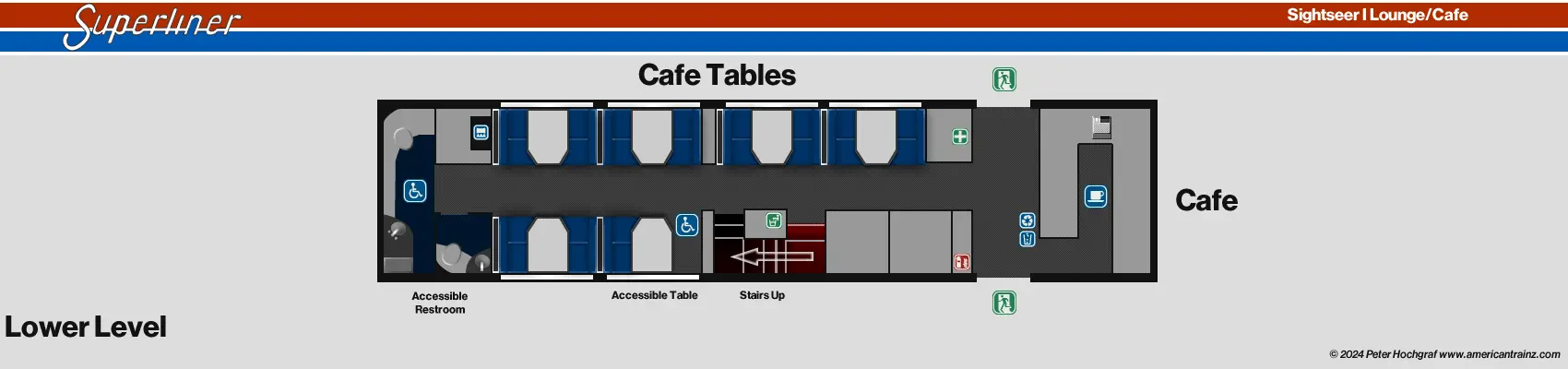

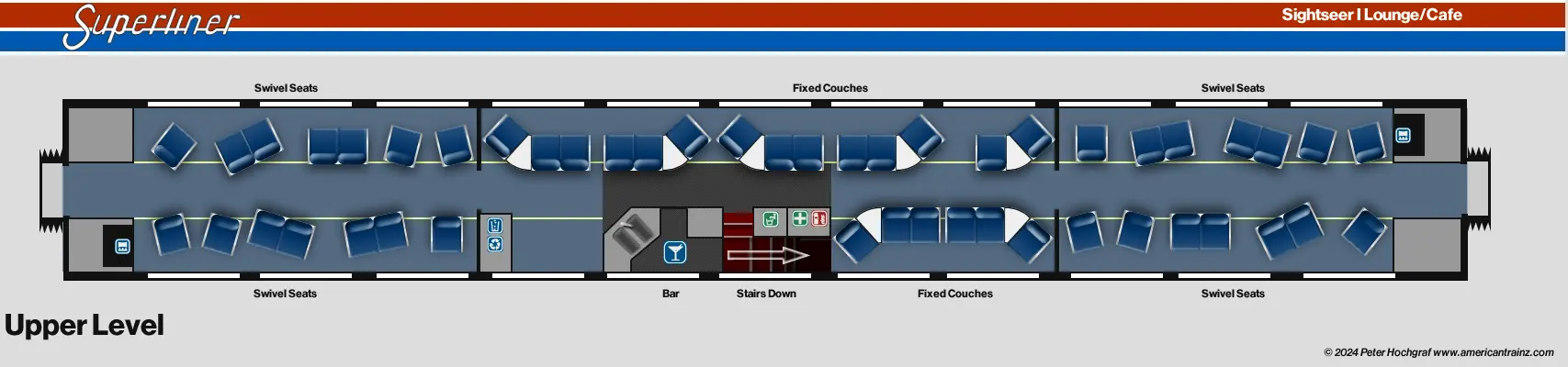

Superliner I Sightseer Lounge

The Superliner Sightseer Lounge is a unique car found on select Amtrak long-distance trains. This car offers panoramic views of the passing scenery through its large windows, making it a popular destination for passengers seeking a more immersive travel experience. The lounge often features comfortable seating, a small cafe area, and a relaxed atmosphere, providing a great place to unwind and enjoy the journey. It's a perfect spot to relax, socialize, or simply take in the breathtaking landscapes.



Return to Top

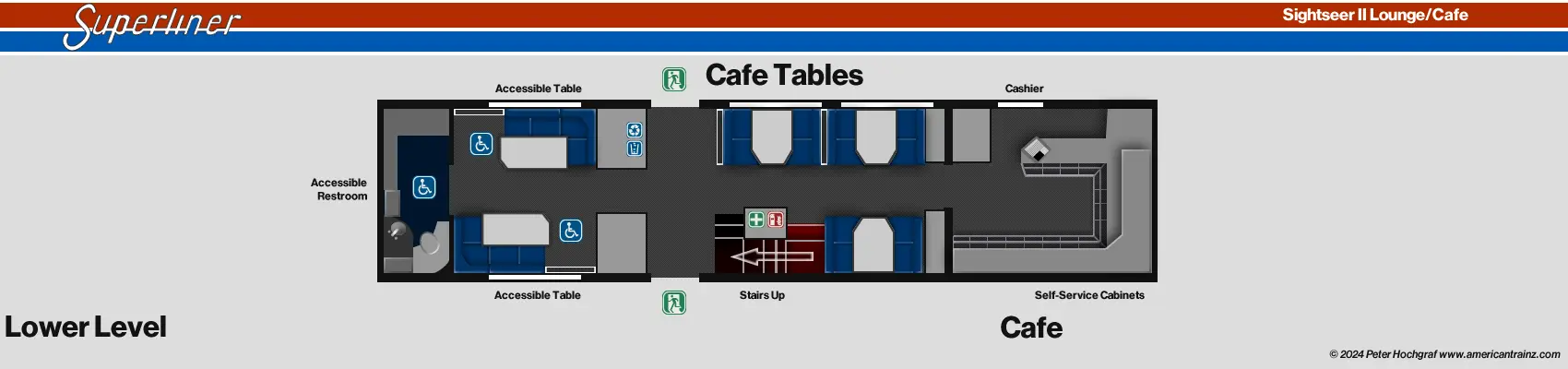

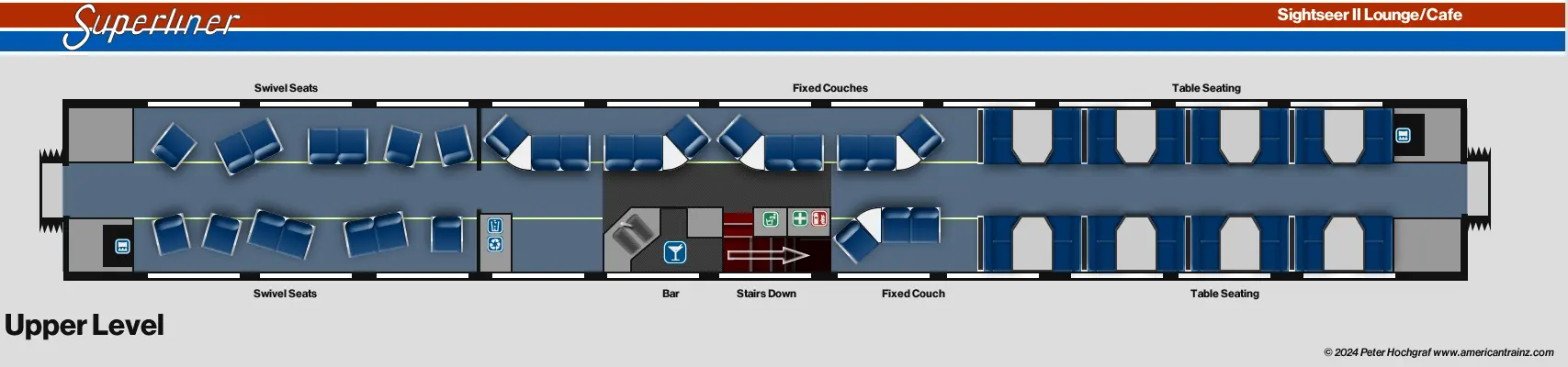

Superliner II Sightseer Lounge

The Superliner Sightseer Lounge is a unique car found on select Amtrak long-distance trains. This car offers panoramic views of the passing scenery through its large windows, making it a popular destination for passengers seeking a more immersive travel experience. The lounge often features comfortable seating, a small cafe area, and a relaxed atmosphere, providing a great place to unwind and enjoy the journey. It's a perfect spot to relax, socialize, or simply take in the breathtaking landscapes. These lounges contain tables on one half of the upper level.



Return to Top

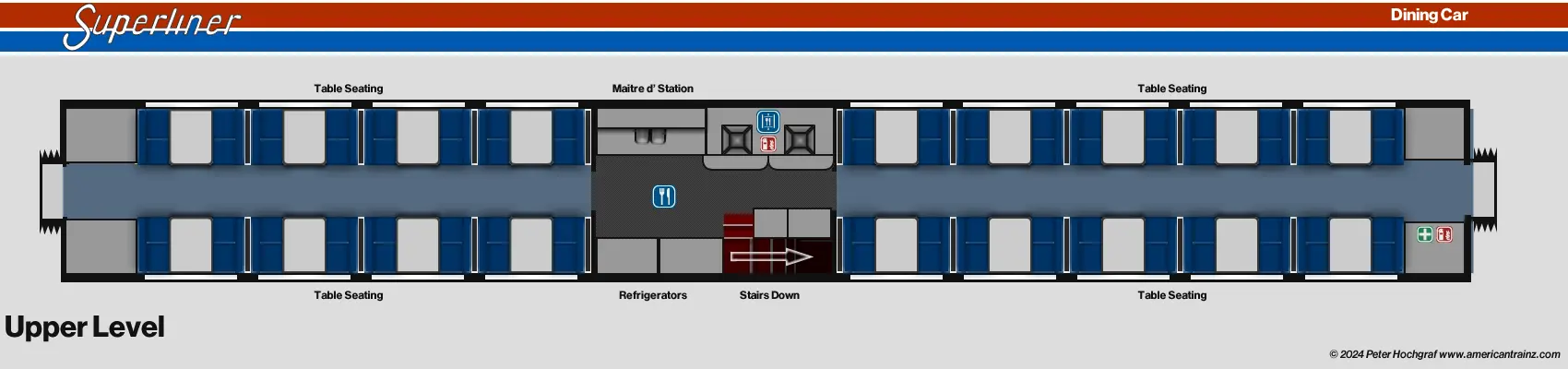

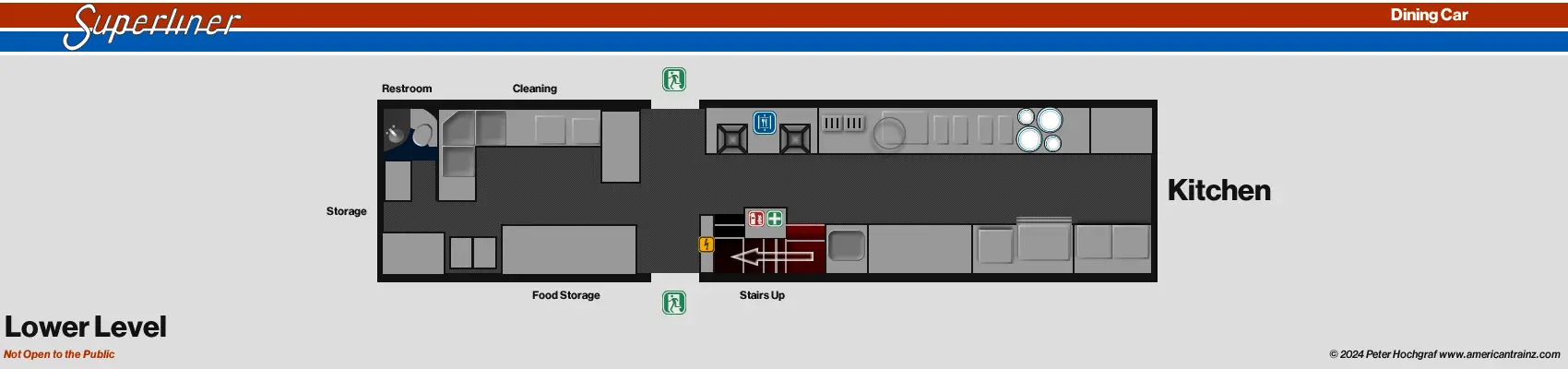

Superliner Diner

The Dining Car houses tables for dining during meal times as well as a galley for cooking food on the lower level.



Return to Top

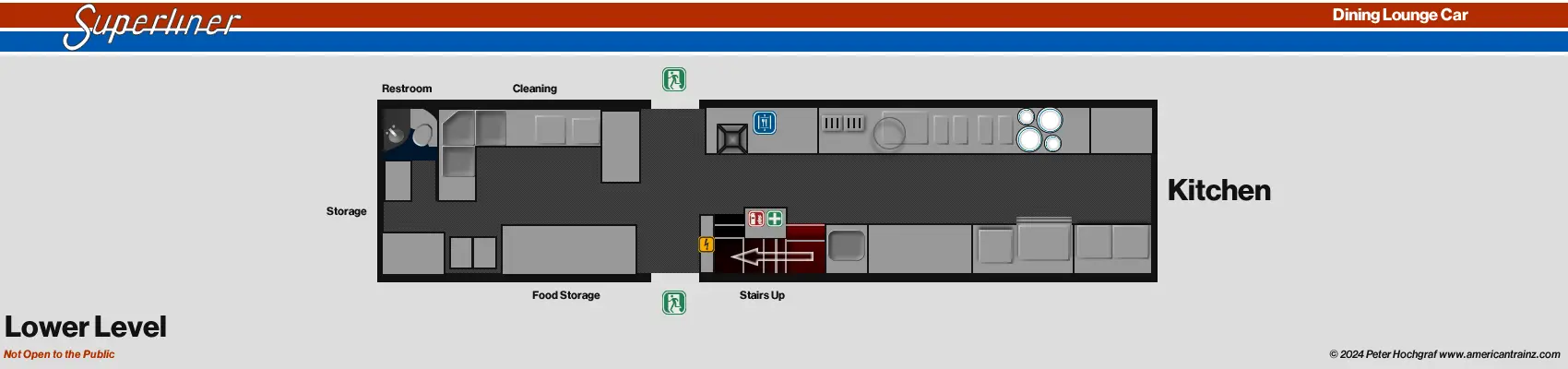

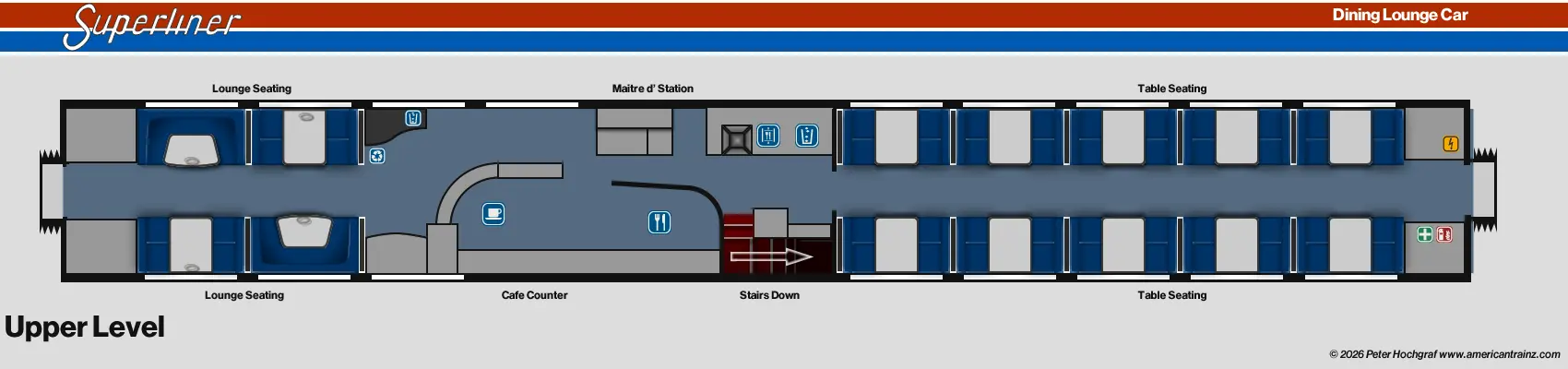

Superliner Diner Lite

Coming Soon!

The Diner Lite is a more casual version of the traditional Superliner Dining Car. It offers a more relaxed and informal dining experience, with a variety of quick-service food options. Diner Lite cars are equipped with booth seating and feature a small cafe counter. While they don't offer the full-service dining experience of the Dining Car, they provide a convenient and affordable option for passengers who want to grab a bite to eat during their journey.



Return to Top

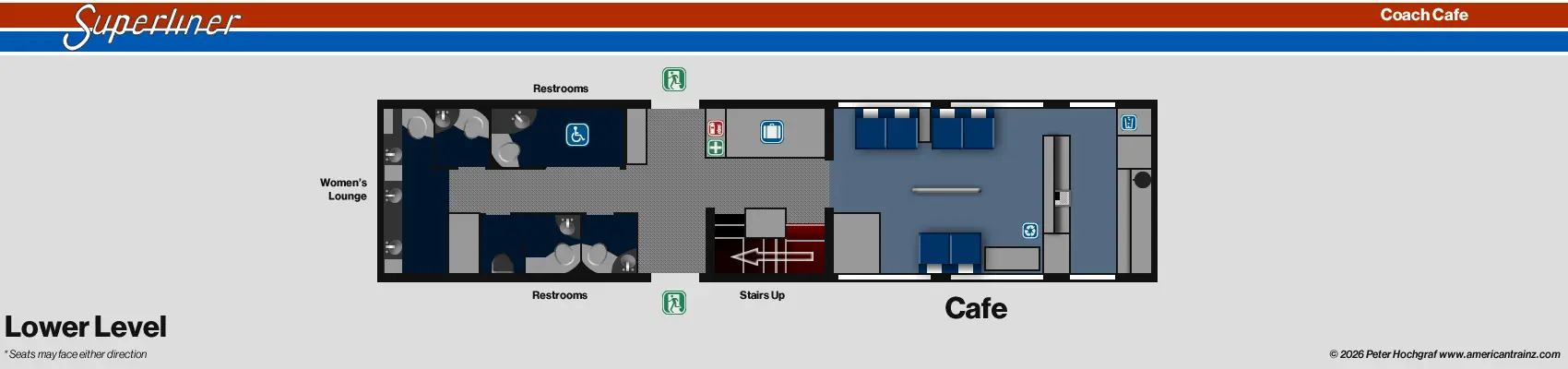

Superliner Coach Cafe

Coming Soon!

The Coach Cafe is a standard coach car on the upper level, and replaced the lower coach seating area with a walk-up cafe counter.



Return to Top

Surfliner Cars

Coming Soon!

The Surfliner fleet is a collection of bi-level intercity railcars used on Amtrak's Pacific Surfliner route along the California coast. Derived from the Superliner design, Surfliner cars offer comfortable seating, spacious interiors, and large windows for scenic views. They are equipped with modern amenities like power outlets and Wi-Fi, making them ideal for both short and long-distance travel. The Surfliner fleet is known for its reliability and efficiency, providing a convenient and enjoyable way to travel along the beautiful California coastline.

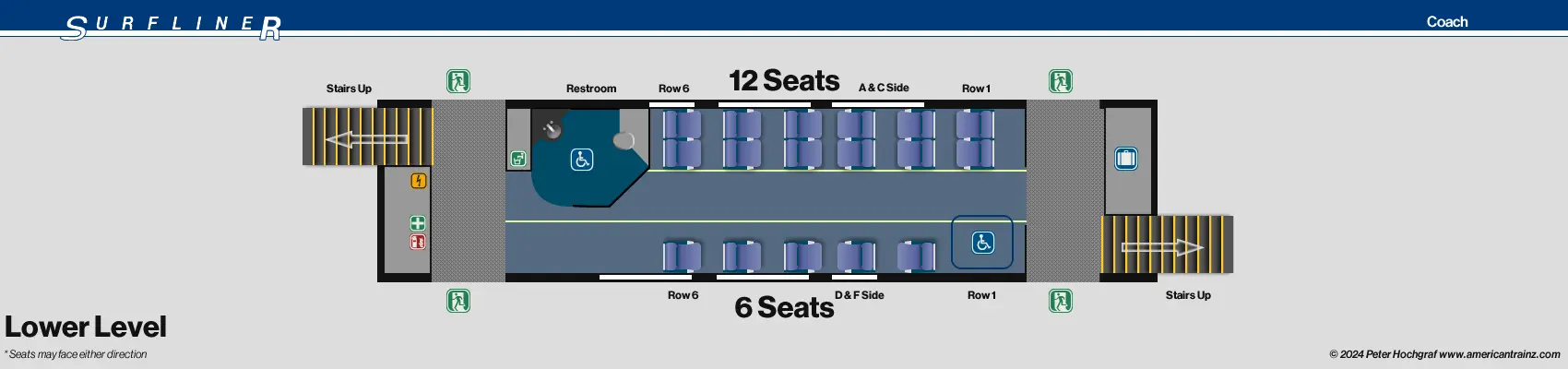

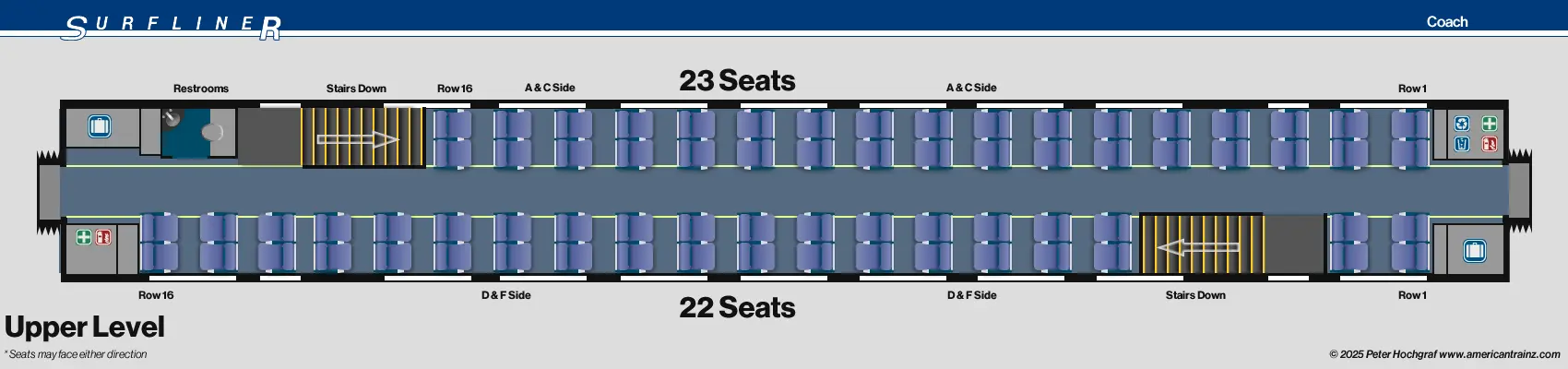

Surfliner Coach



Return to Top

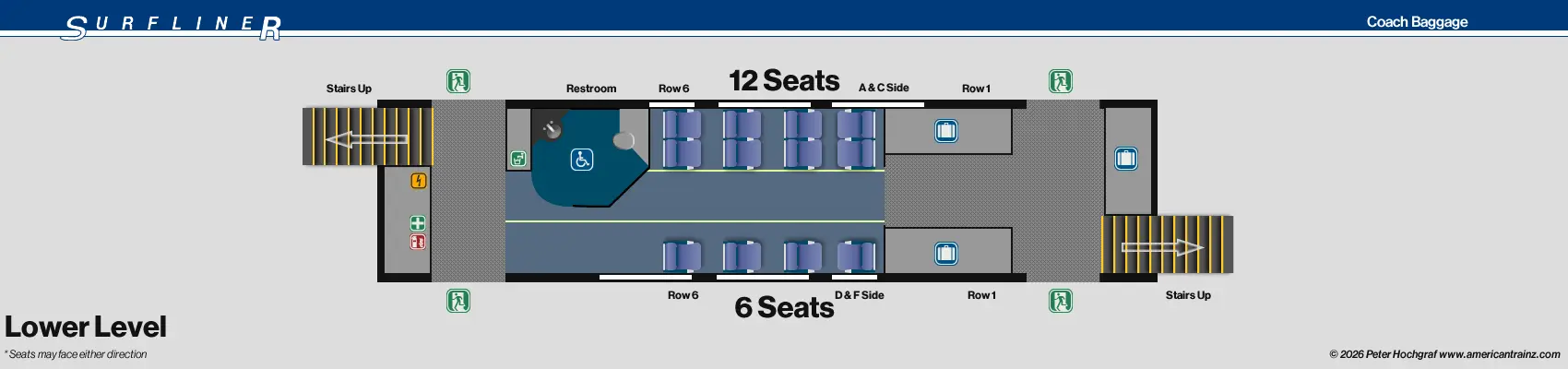

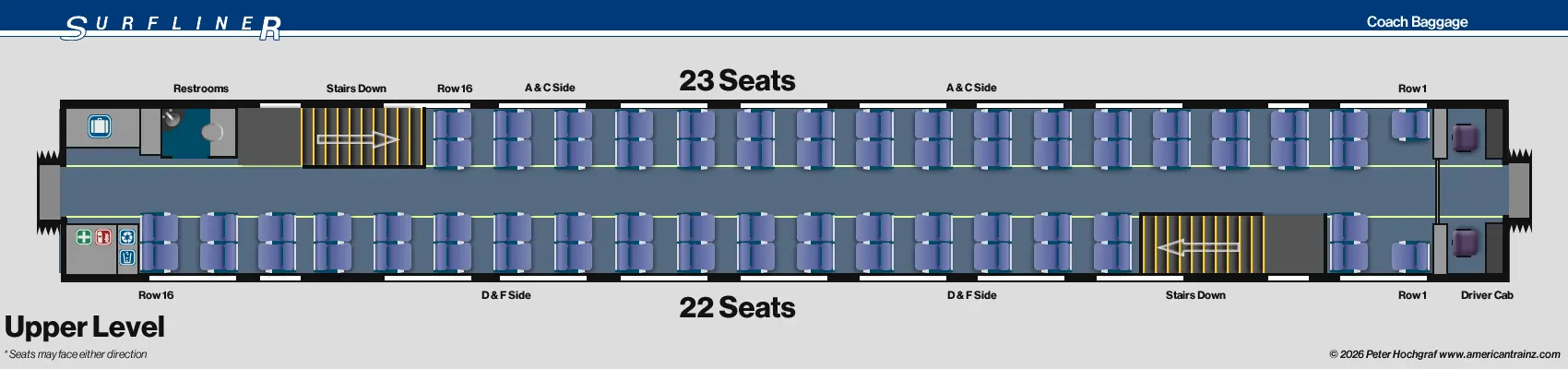

Surfliner Coach Baggage



Return to Top

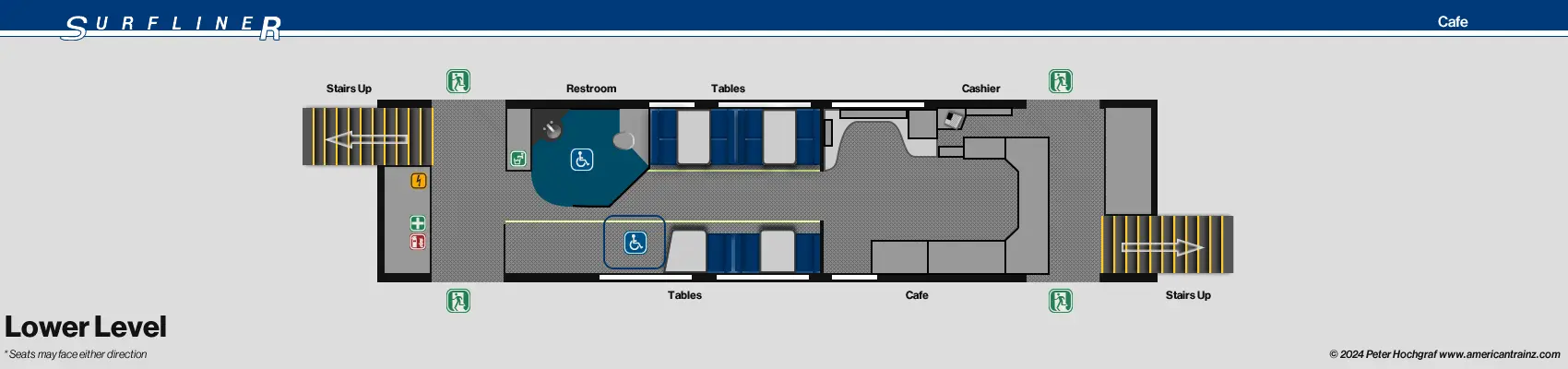

Surfliner Coach/Cafe



Return to Top

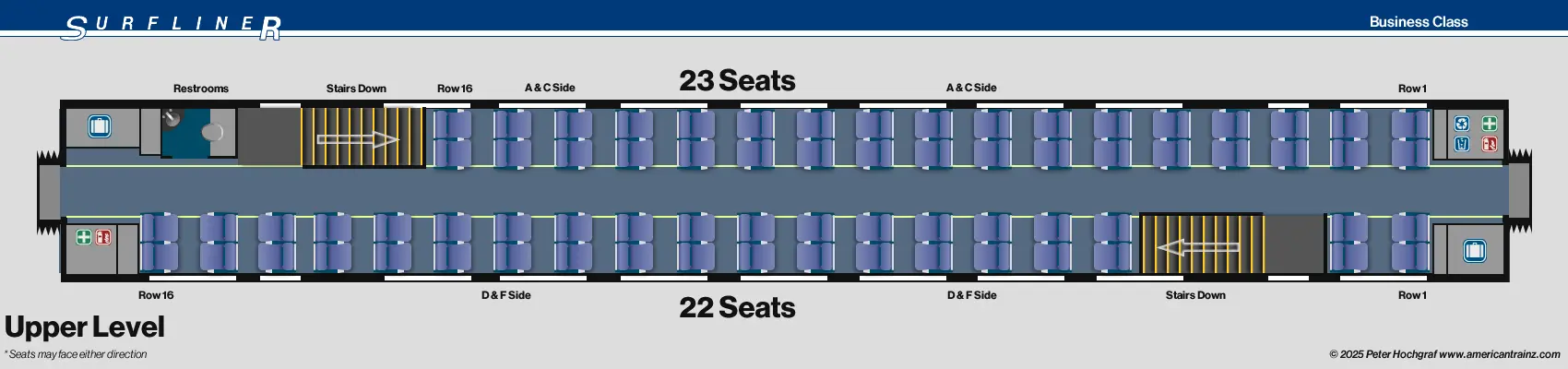

Surfliner Business



Return to Top
